RetroCode — an 8-bit Assembly & BASIC IDE for macOS

Why it exists

It started with a TRS-80 and a good dad.

In 7th grade, Steve's dad surprised him with a TRS-80 Color Computer. There was no App Store, no Stack Overflow — just a blinking cursor, a stack of magazines full of BASIC listings, and hours spent typing them in line by line. PEEK and POKE poked at raw memory. 10 GOTO 10 was your first infinite loop. You learned how a computer actually worked, one byte at a time.

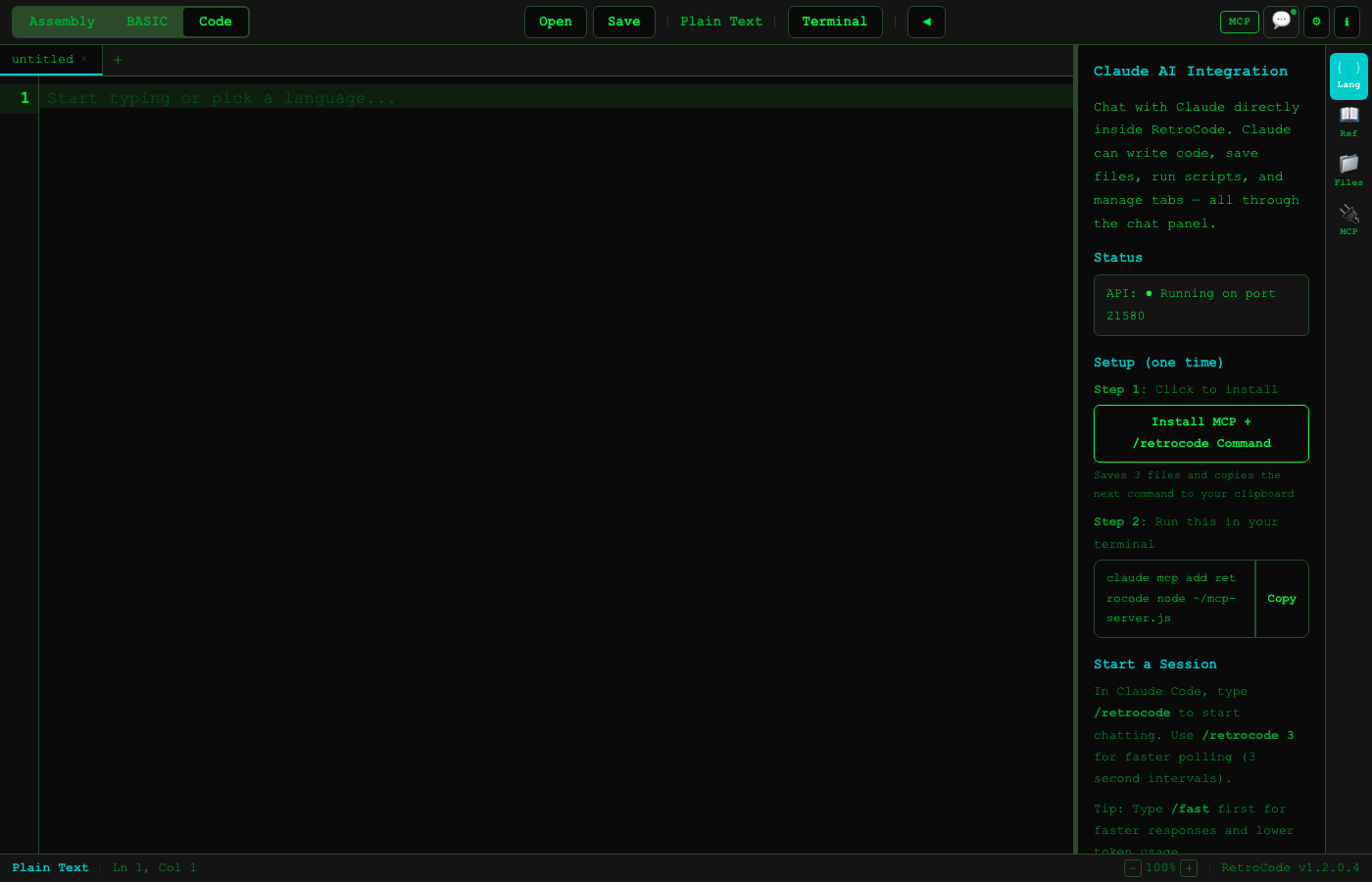

RetroCode is that machine, rebuilt for a Mac — a real 8-bit CPU you can single-step, a BASIC that draws on a chunky pixel display, and an AI sitting beside you the way a patient friend would have back then. It's the on-ramp to programming we wish we could hand every curious kid.

Three machines in one

Assembly, BASIC, and a modern code editor.

Assembly

Write for The Hex Machine — a 30-instruction 8-bit CPU with A/B registers, 256 bytes of RAM, a stack, and a 64×48 graphics screen. Single-step and watch every register.

BASIC

A full TRS-80-style BASIC V2.0 — line numbers, GOSUB, FOR/NEXT, DATA/READ, string & math functions, INKEY$, and graphics.

Code

A modern editor for 23+ languages with syntax highlighting, up to 5 tabs, and an integrated terminal running in your real shell.

How the CPU works

The Hex Machine — an 8-bit trainer you can see think.

Inspired by the 1980s Science Fair Microcomputer Trainer, The Hex Machine is deliberately tiny — small enough to hold in your head. That's the whole point: every instruction is one or two bytes, and you can watch the registers, flags, and memory change on every step.

The registers & memory

A and B — two 8-bit registers (values 00–FF)
256 bytes of memory, addressed 00–FF
A stack that grows downward from FF (PUSH/POP)
Zero and carry flags, set by arithmetic and compares
A 64×48 pixel graphics display (PLOT, DRAW, CIRCLE, GCLS, GPRINT)
Labels and hex literals so you never hand-count jump addresses

A program that draws & counts

      LDI  10      ; A = 10
      STA  $40     ; store A at 0x40
      GCLS         ; clear the screen
LOOP: PLOT A, 24   ; plot pixel (A, 24)
      DEC          ; A = A - 1
      JNZ  LOOP    ; loop until A == 0
      HLT          ; stop

The instruction set (30 opcodes)

LDA / LDIload A from mem / immediate

STAstore A to memory

LDB / LBI / STBthe same, for B

MOVcopy A → B

ADD / SUBA = A ± B

INC / DECA ± 1 (wraps)

MUL / DIV / MODmultiply, divide, remainder

AND / OR / XOR / NOTbitwise logic

SHL / SHRshift A left / right

CMP / CPIcompare A with B / immediate

JMPunconditional jump

JZ / JNZ / JCconditional jumps

PUSH / POPstack operations

PLOT / DRAW / CIRCLEgraphics primitives

GCLS / GPRINTclear / print on the pixel screen

NOP / HLTdo nothing / halt

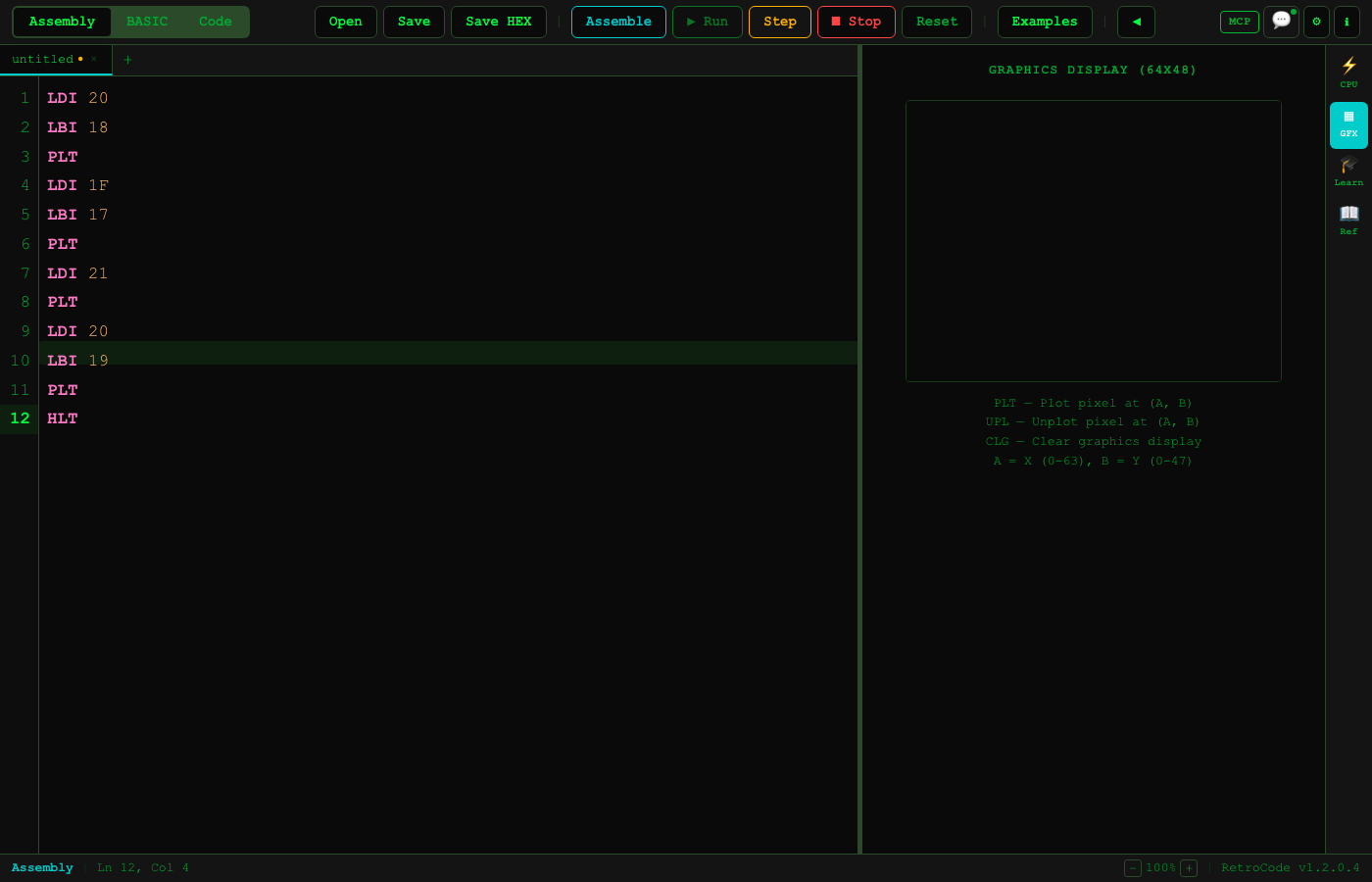

RetroCode assembly mode with graphics — Assembly mode: your program on the left, registers and the 64×48 display on the right.

How BASIC works

Line-numbered BASIC, exactly like 1977.

RetroCode's BASIC V2.0 is modeled on the TRS-80: numbered lines you can GOTO, GOSUB/RETURN, FOR/NEXT loops, IF/THEN, INPUT, DATA/READ, string and math functions, RND, INKEY$ for live keys, and the same PLOT/DRAW/CIRCLE/GCLS graphics on the 64×48 screen. Up to 500 lines per program.

A real sample: guess the number

10 REM NUMBER GUESSING GAME
20 LET N = INT(RND(1) * 100) + 1
30 LET G = 0
40 PRINT "I'M THINKING OF A NUMBER 1-100"
50 INPUT "YOUR GUESS"; A
60 LET G = G + 1
70 IF A = N THEN GOTO 120
80 IF A < N THEN PRINT "TOO LOW!"
90 IF A > N THEN PRINT "TOO HIGH!"
100 GOTO 50
120 PRINT "YOU GOT IT IN "; G; " GUESSES!"
130 END

What you can reach for

Flow: GOTO, GOSUB/RETURN, IF/THEN, FOR/NEXT
Data: LET, arrays, DATA/READ/RESTORE
Text & math: LEFT$, MID$, LEN, INT, RND, ABS
Input: INPUT, and INKEY$ for live keypresses
Graphics: PLOT, DRAW, CIRCLE, GCLS on a 64×48 grid
Built-in sample programs and lessons to start from

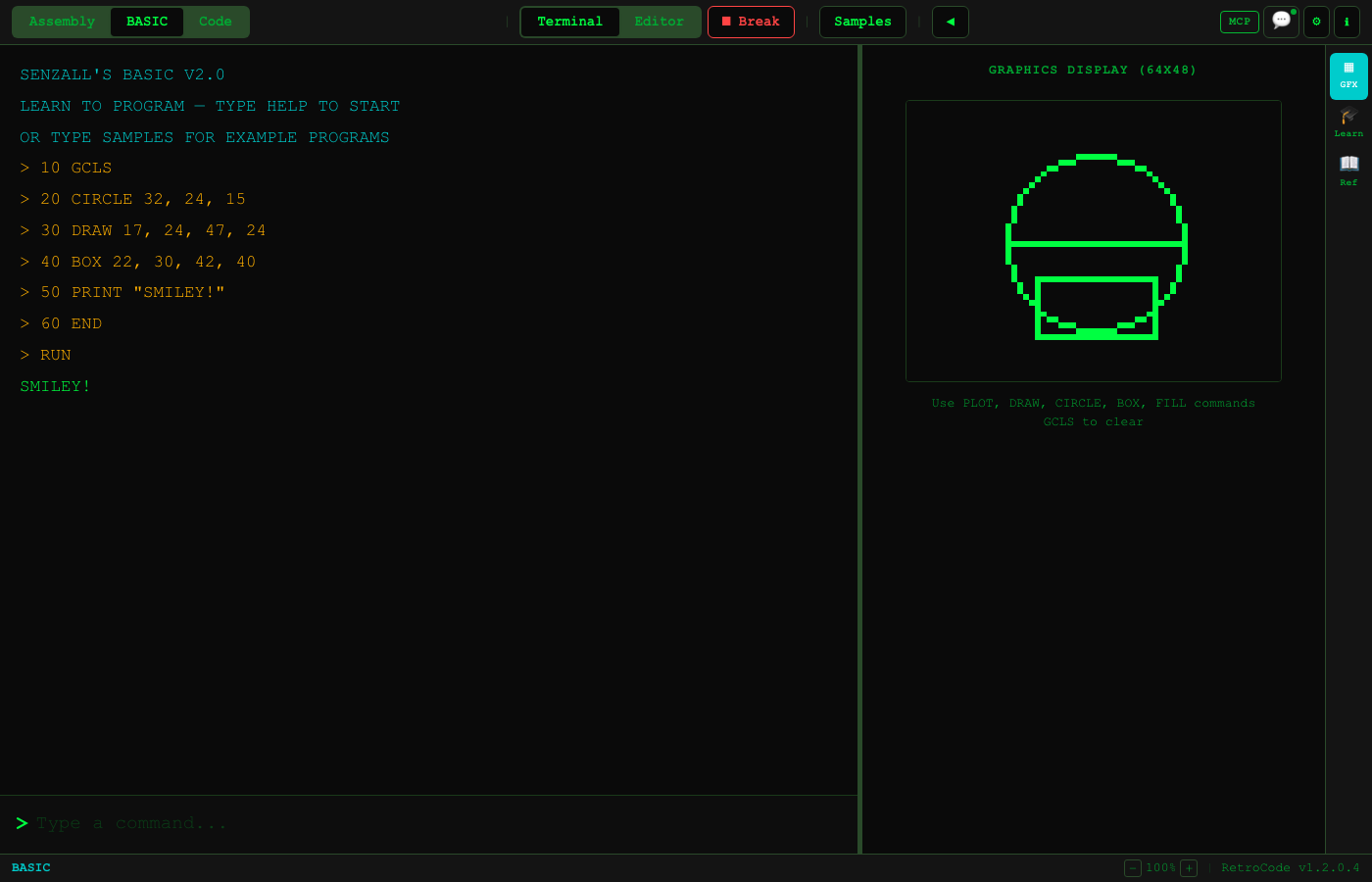

RetroCode BASIC mode with graphics output — BASIC mode: type a listing, hit RUN, and watch it draw on the retro display.

Code like it's 1980.
